AUGER DRIVES - 2 Speed Drilling Drive — 1.5T - 6T

Verified Reviews!

2 Speed Std Flow up to 6T

Digga's 2 speed drilling auger drives for standard flow machines have been designed for a wider range of applications. Offering a high speed, low torque setting for the smaller auger jobs when you need that extra RPM, and low speed, high torque for when you really need to grind out that larger diameter hole. It's like having 2 drive units in 1.

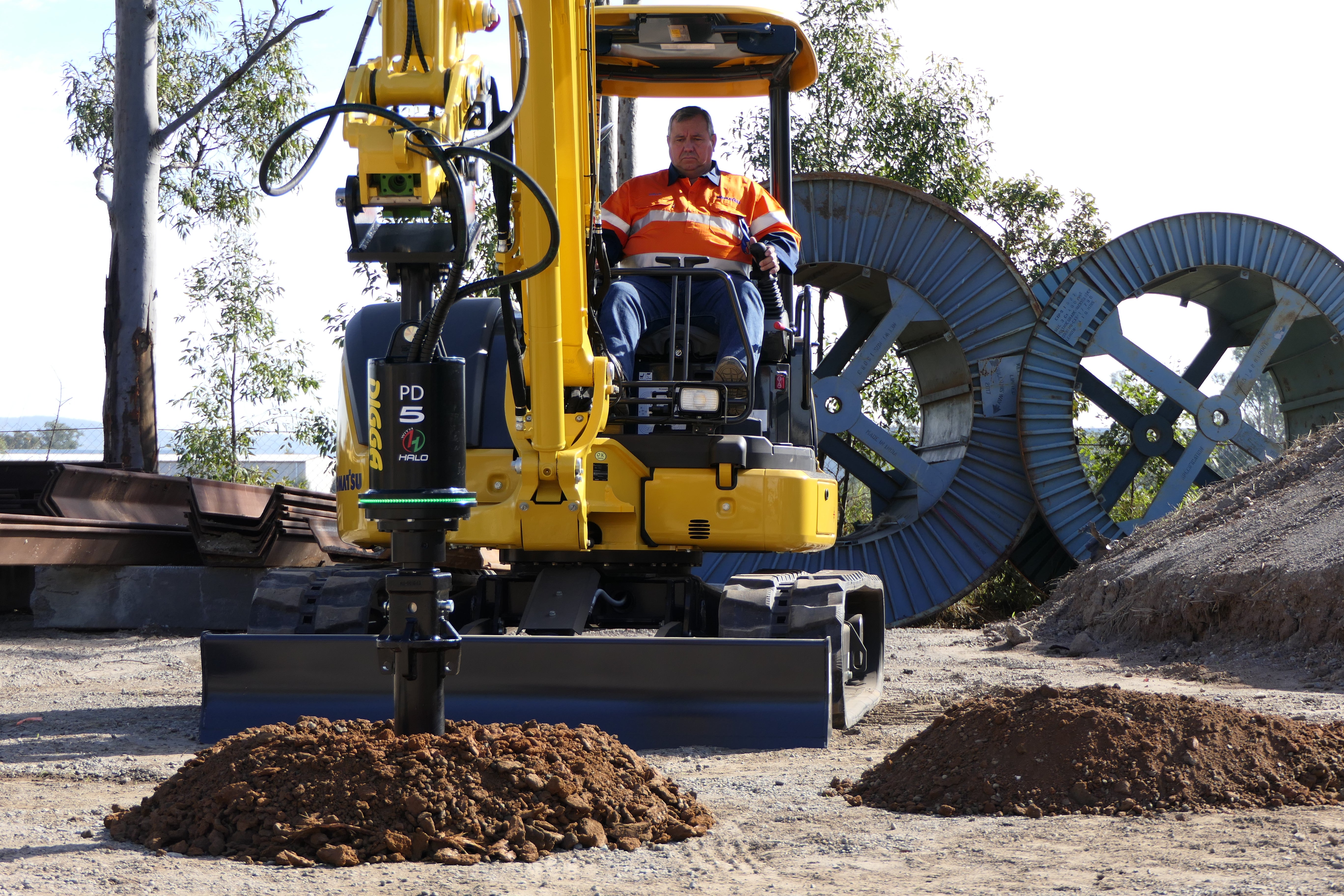

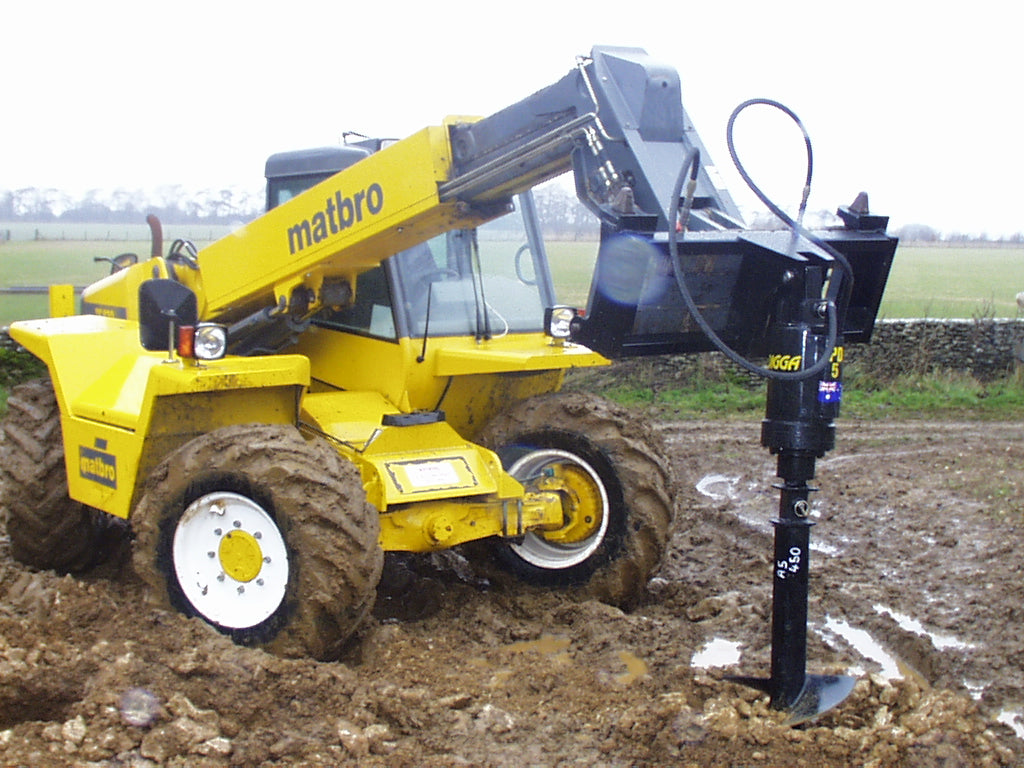

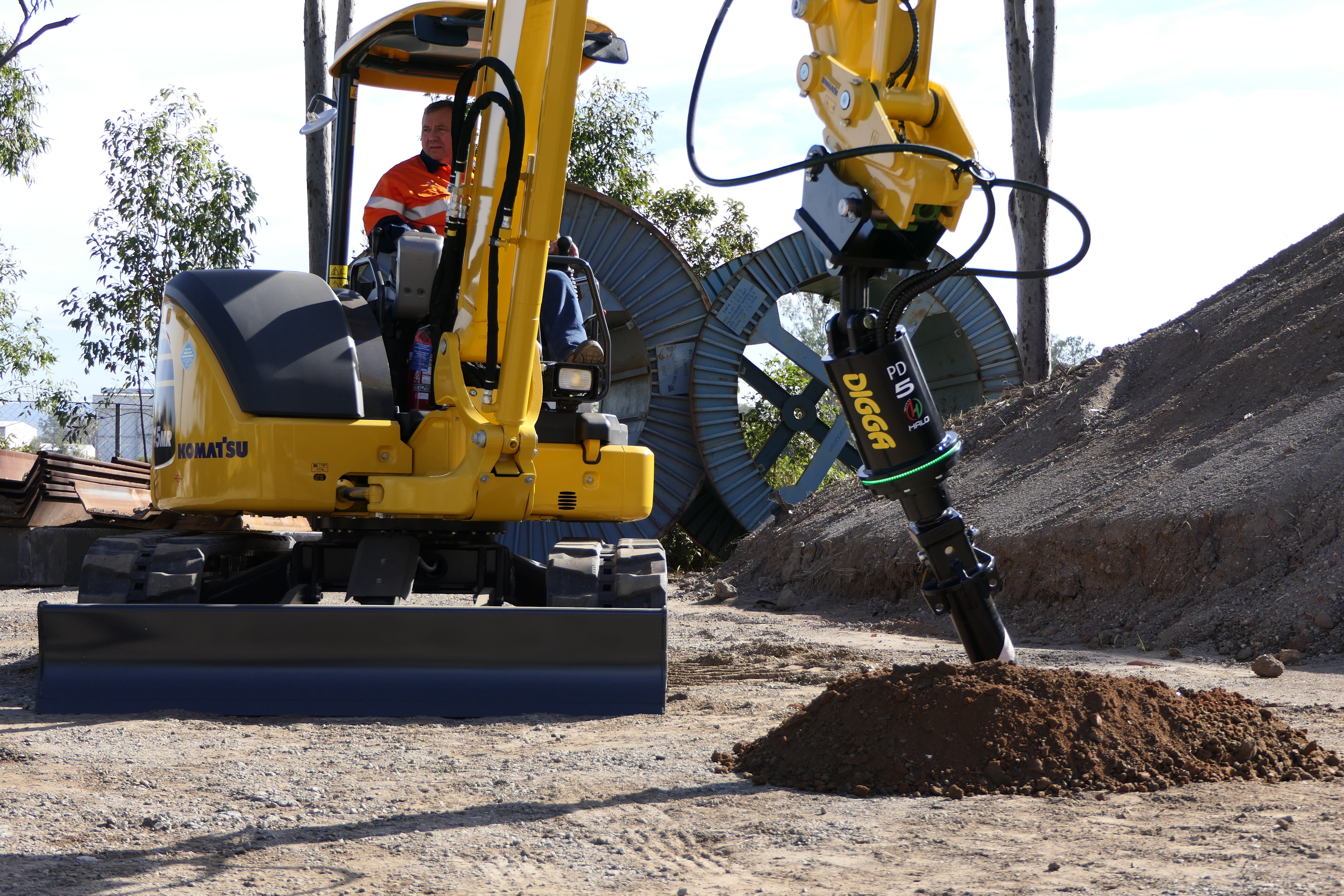

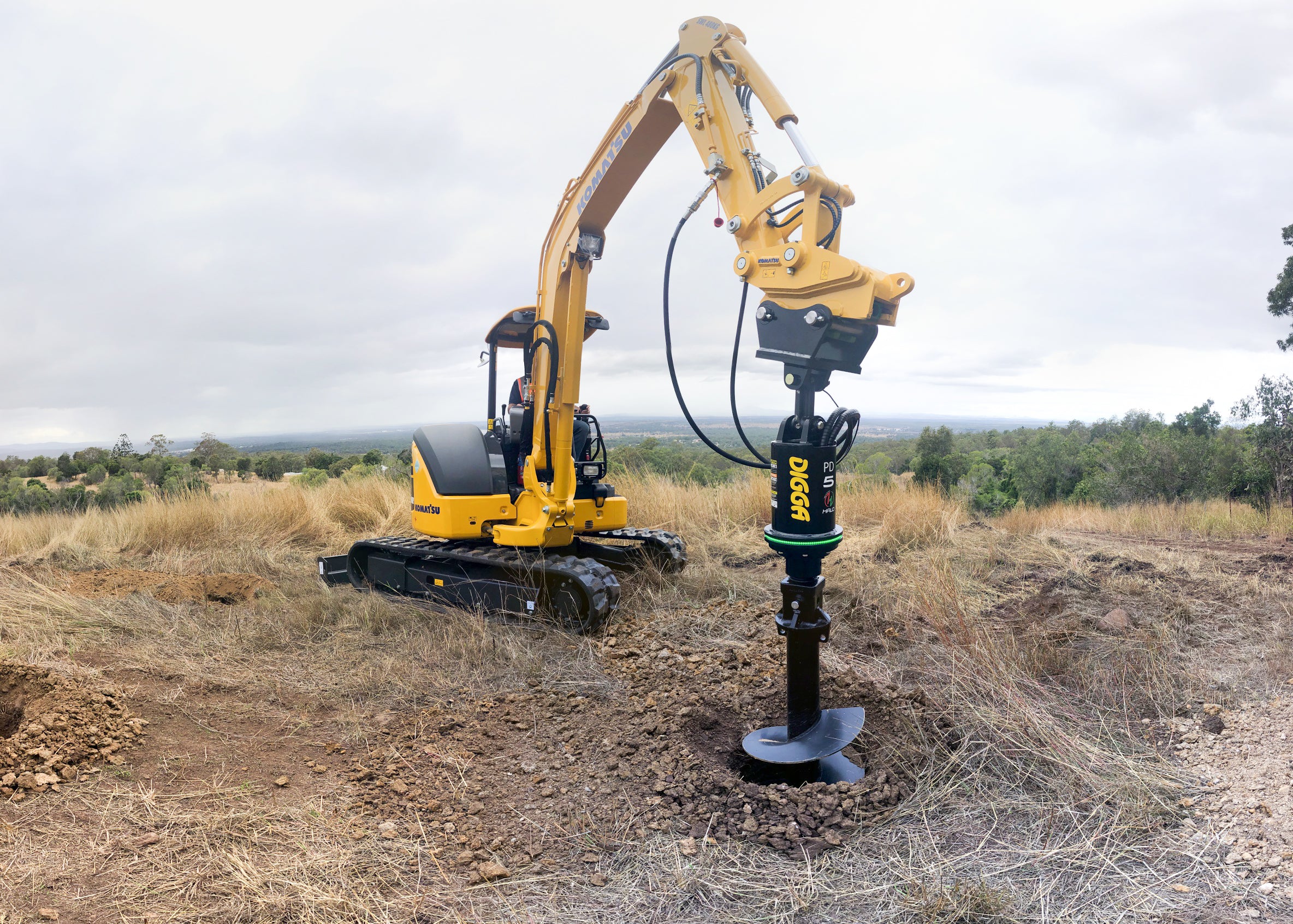

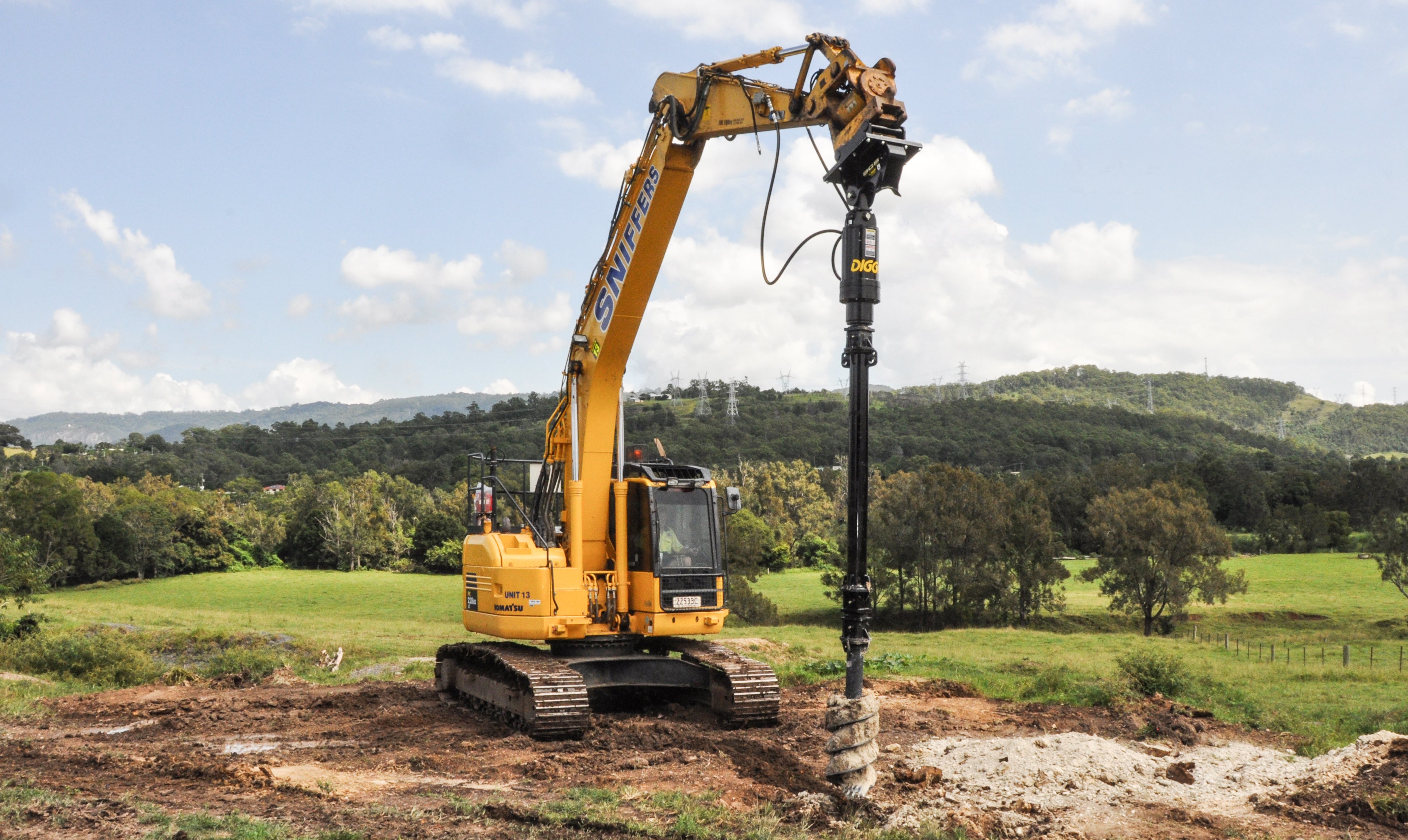

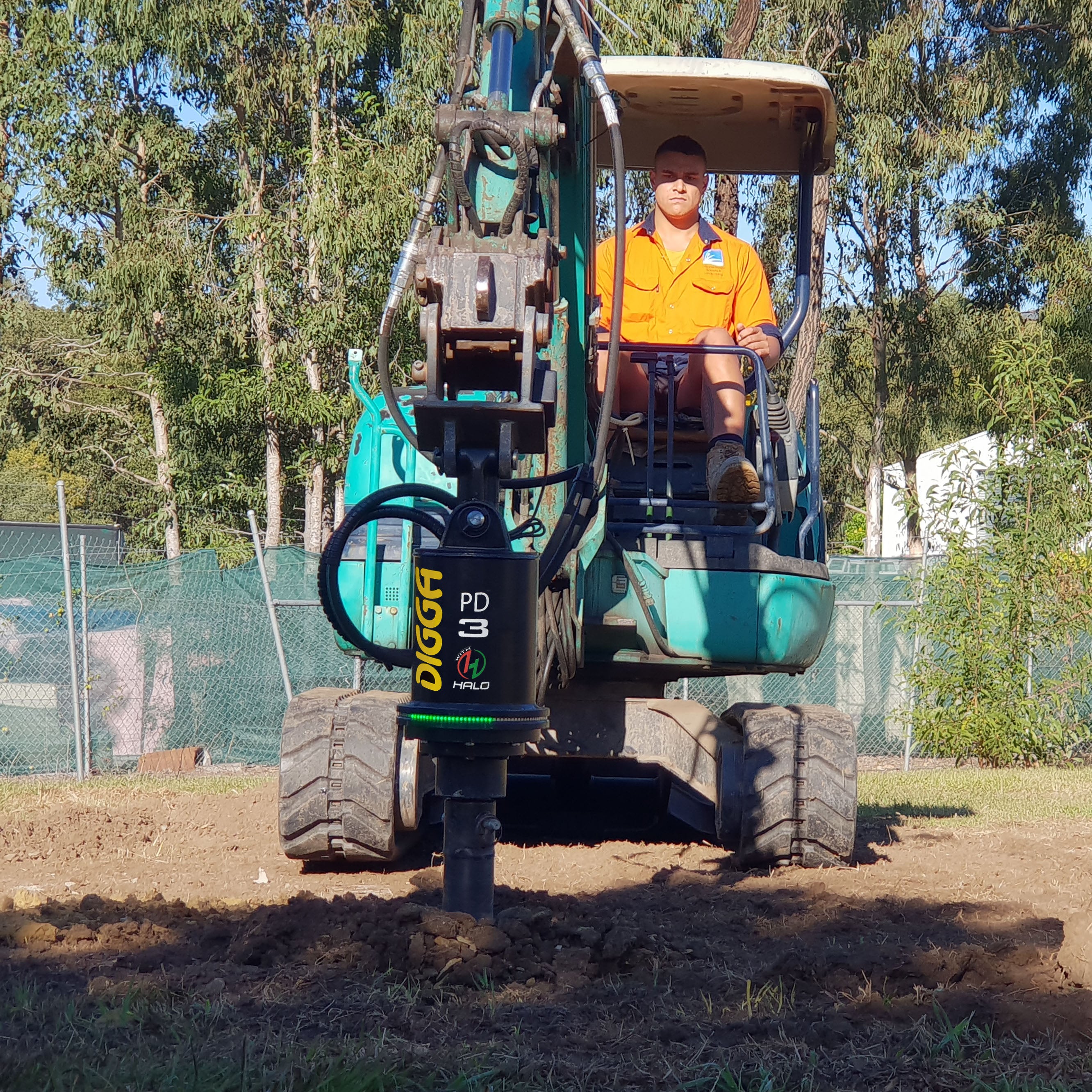

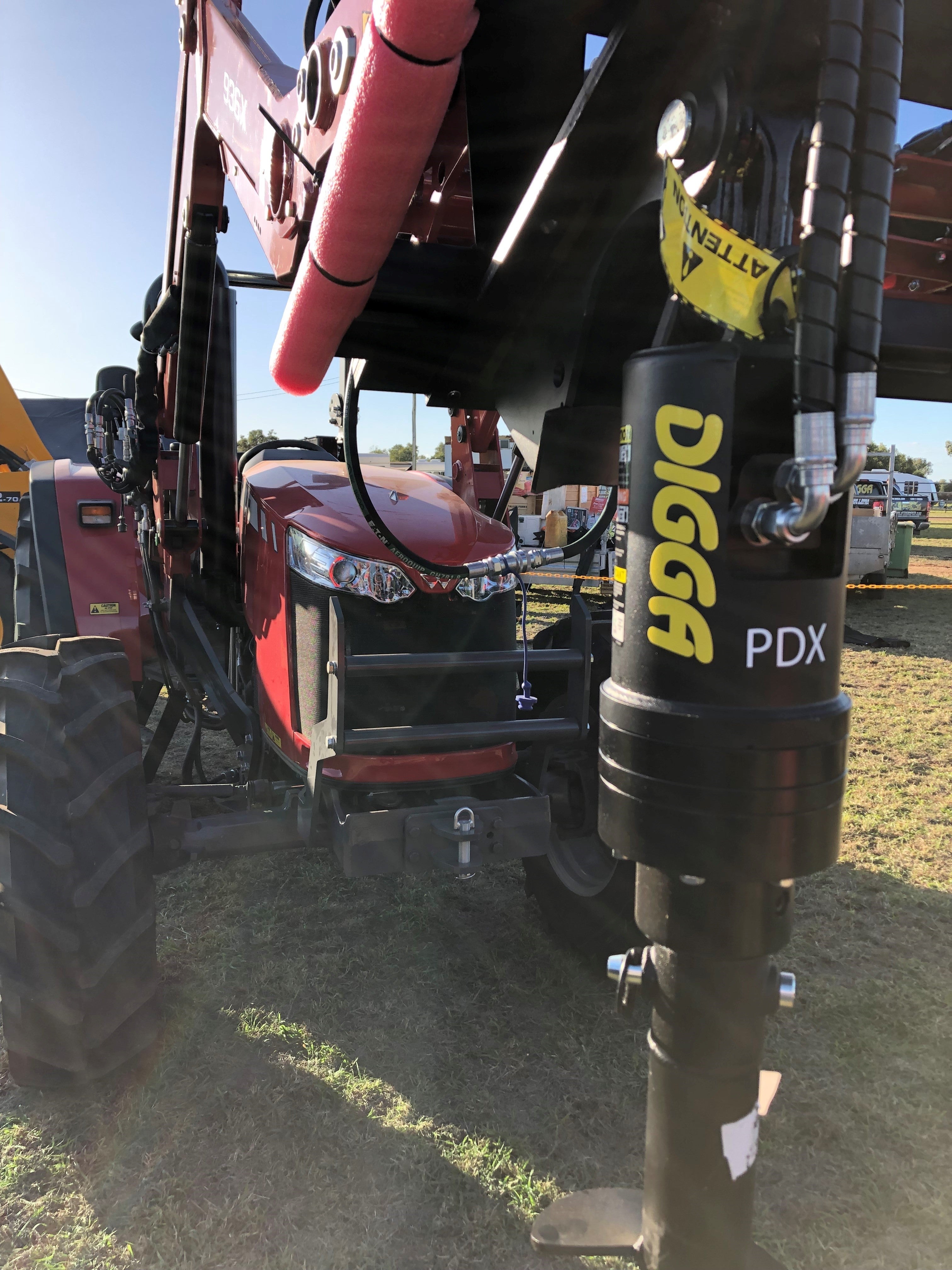

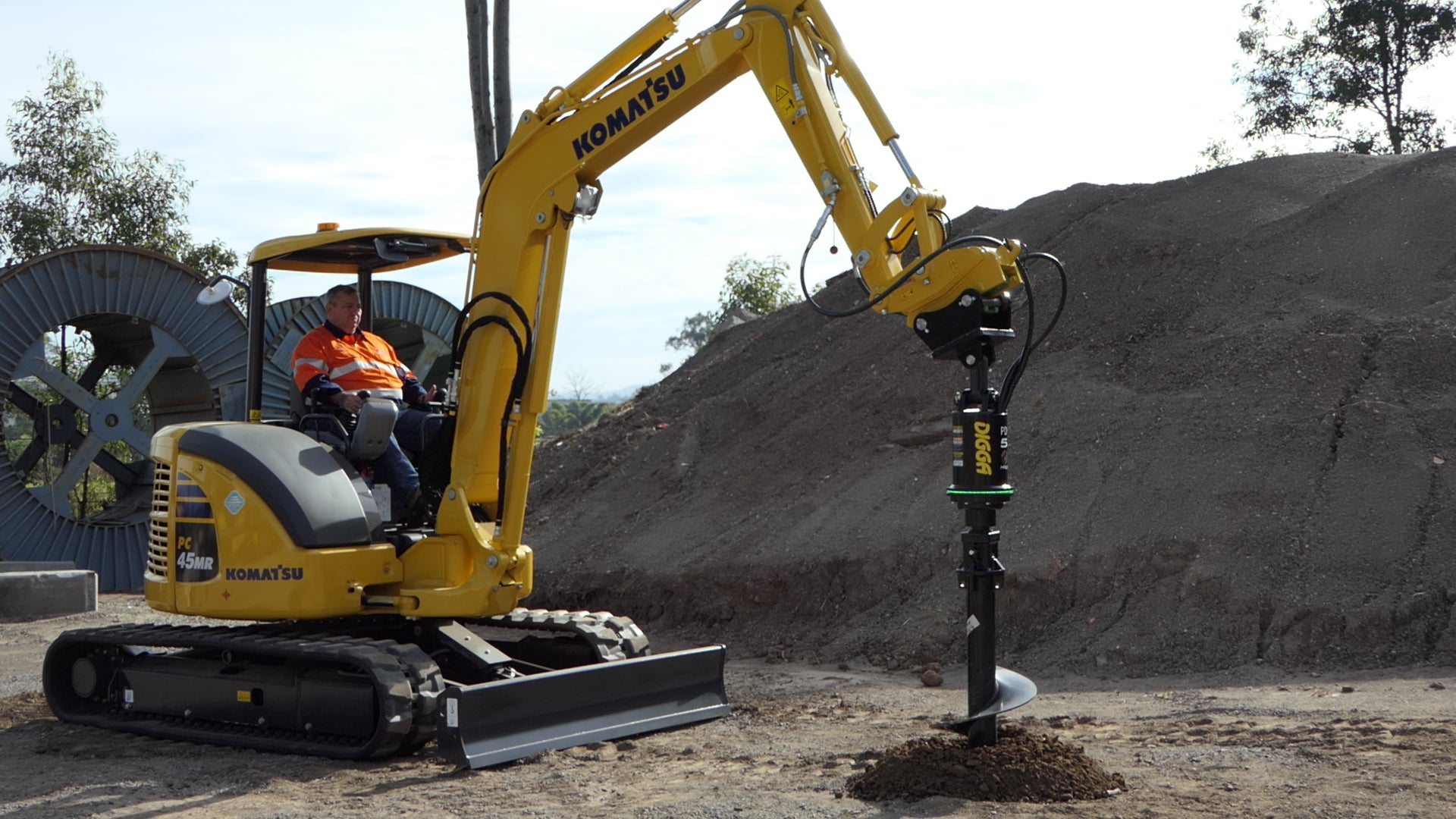

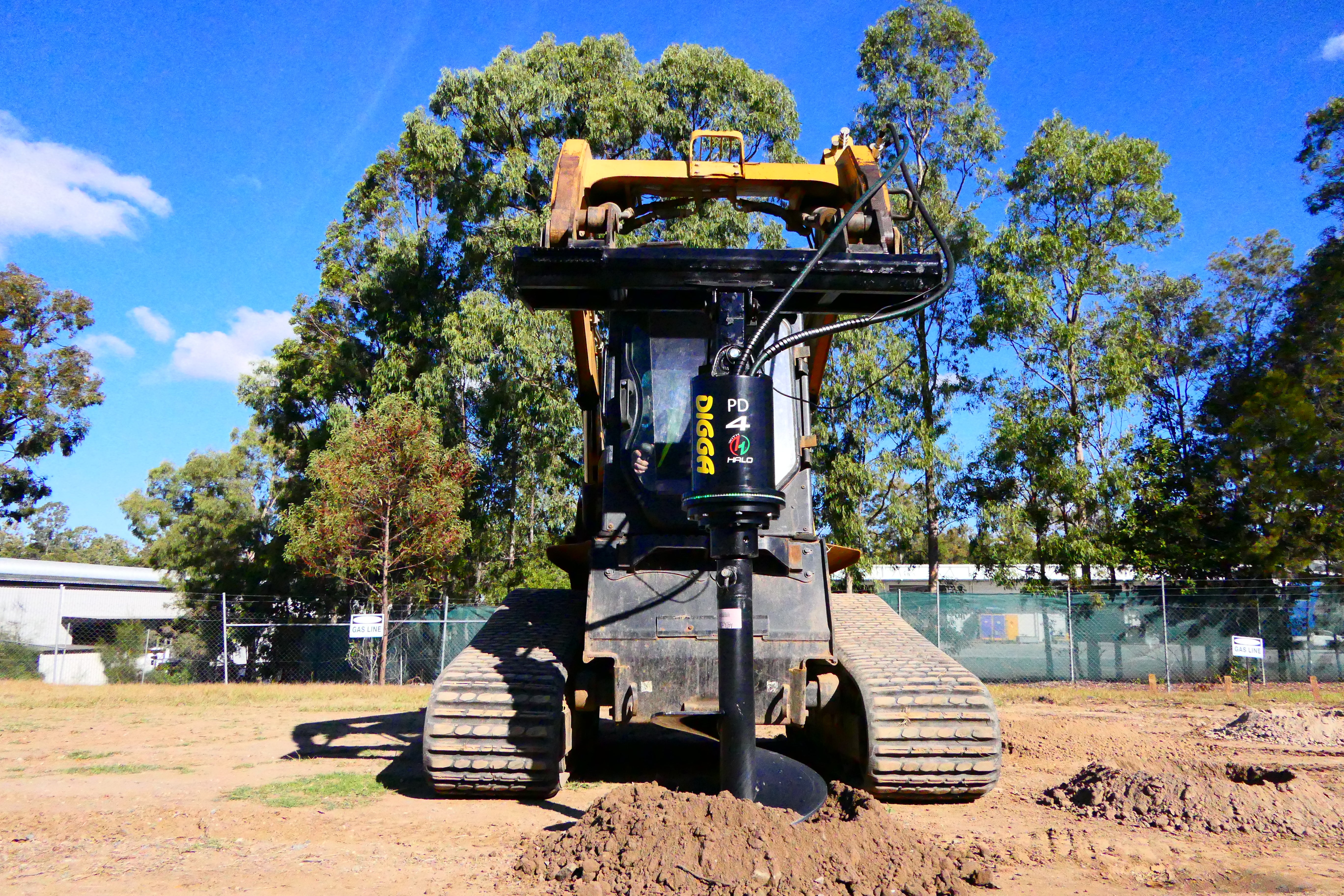

Two speed drives suit excavators & skid steer loaders, truck cranes, wheeled loaders, and backhoes with flows between 20 and 75 lpm.

Improved motor design & performance with 2 Speed options:
- Low speed - High torque for large holes
- High speed - Low torque for smaller holes
Suitable for a wide range of ground conditions:
- Soft loose soils, hard soils, and rocky conditions
Integrated PRV (Pressure Relief Valve)
Simple electrical connection:
- 12 or 24 volt coil, just requiring connection
- Optional joystick switches, floor mounted switches & cigarette plugs available pre-wired to suit
Low maintenance with 5yr gear box and 3yr motor warranty

Features & Benefits

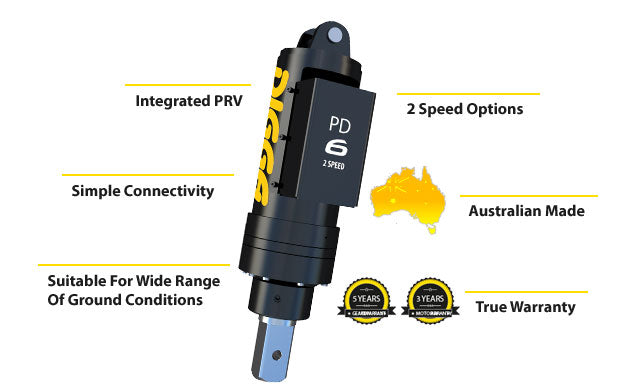

Digga drives come packed with really practical features like top mounted hose ports, cutting edge design, and a 2 piece shaft just to name a few. Hover your mouse over the features´ 'plus' symbol on the diagram below to reveal the respective benefits.

2 Speed Standard Flow Auger Drive Specifications

SPECIFICATION	PDT3	PDT6
Recommended Flow	20-75 lpm	20-75 lpm
Max Torque	2954 Nm	4664 Nm
Motor	2K Bell EATON	2K Bell EATON
Pressure Valve Fitted	Included	Included
Energy Control Valve	N / A	N / A
Case Drain Required	Optional	Optional
Max Pressure	Do not exceed 200 bar @ 76 lpm
Max Flow	Do not exceed 76 lpm @ 200 bar
Max Continuous Power	Do not exceed 25 Kw (34 hp)
Overall Length	766 mm	877 mm
Diameter	240 mm	240 mm
Weight (no frame / hitch)	75 Kg	104 Kg
Std Output Shaft	65 mm Round	75 mm Square
Swing Control	Optional	Optional
Diggalign	Optional	Optional
Rec Auger	4 Series	4 Series / 6 Series
Max Auger Dia Clay / Shale	400 mm	600 mm
Max Auger Dia Earth	500 mm	900 mm
