Core Barrels

Core Barrels are used when conventional augers are less effective or in conjuction with tapered rock augers for very hard rock drilling. The Core Barrel is designed with a thin cutting edge to maximise the penetration rate through less contact surface area having to be cut and removed.

Digga Core Barrels range from 300mm - 2000mm in diameter and come fitted with a Kelly Box (drive hub) to suit your machine.

Provision for reamer bars
Standard (STD) & heavy duty (HD) base ring option available
Comes fitted with Kelly Box (drive hub) to suit your machine
Wear ribs extend barrel life and eliminates barrel stalling
Custom Buckets & other tooth options available upon request

Features & Benefits

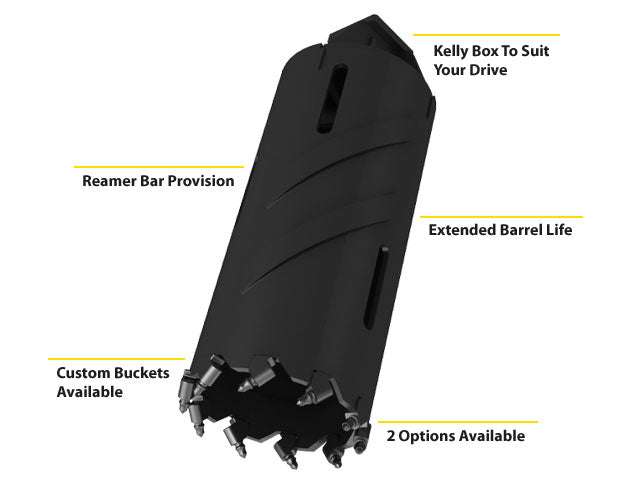

Digga rock core barrels are made from the highest grade of metal and boast many practical features. Hover your mouse over the features´ 'plus' symbol on the diagram below to reveal the respective benefits.

Core Barrel Specifications

MODEL	300MM	400MM	450MM	500MM	600MM
Cutting Diameter	300mm (12”)	400mm (16”)	450mm (18”)	500mm (20”)	600mm (24”)
Overal Length	1500mm (60”)	1500mm (60”)	1500mm (60”)	1500mm (60”)	1500mm (60”)
Base Ring	STD / HD	STD / HD	STD / HD	STD / HD	STD / HD
Hub Options *	5	5, 7	5, 7, 9	5, 7, 9	5, 7, 9
Teeth	19 / 25mm Rotating Pick	19 / 25mm Rotating Pick	19 / 25 / 32mm Rotating Pick	19 / 25 / 32mm Rotating Pick	19 / 25 / 32mm Rotating Pick

MODEL	750MM	900MM	1000MM	1050MM
Cutting Diameter	750mm (30”)	900mm (36”)	1000mm (40”)	1050mm (42”)
Overal Length	1500mm (60”)	1500mm (60”)	1500mm (60”)	900mm (36”)
Base Ring	STD / HD	STD / HD	STD / HD	STD / HD
Hub Options *	5, 7, 9	5, 7, 9	5, 7, 9	5, 7, 9
Teeth	19 / 25 / 32mm Rotating Pick	19 / 25 / 32mm Rotating Pick	19 / 25 / 32mm Rotating Pick	19 / 25 / 32mm Rotating Pick

MODEL	1200MM	1500MM	1800MM	2000MM
Cutting Diameter	1200mm (48”)	1500mm (60”)	1800mm (72”)	2000mm (80”)
Overal Length	900mm (36”)	900mm (36”)	900mm (36”)	900mm (36”)
Base Ring	STD / HD	STD / HD	STD / HD	STD / HD
Hub Options *	5, 7, 9	5, 7, 9	5, 7, 9	5, 7, 9
Teeth	19 / 25 / 32mm Rotating Pick	19 / 25 / 32mm Rotating Pick	19 / 25 / 32mm Rotating Pick	19 / 25 / 32mm Rotating Pick
