Piling & Foundation - Cleaning Buckets

Verified Reviews!

Cleaning Buckets

Cleaning Buckets are used to remove spoil from holes after drilling to create a clean base.

Digga Cleaning Buckets come fitted with a Kelly Box (drive hub) to suit your machine and can be fitted with a manual hand-operated, or automatic opening mechanism (for emptying) - For drill rigs fitted with striker plate.

Base options include swivel and valve style
Comes fitted with Kelly Box (drive hub) to suit your machine
High tensile cutting edge for a cleaner hole & longer life span
Custom buckets including combination & rock available
Opening mechanism options include manual hand-operated
and fully automatic (suits drill rigs with striker plate fitted)

Features & Benefits

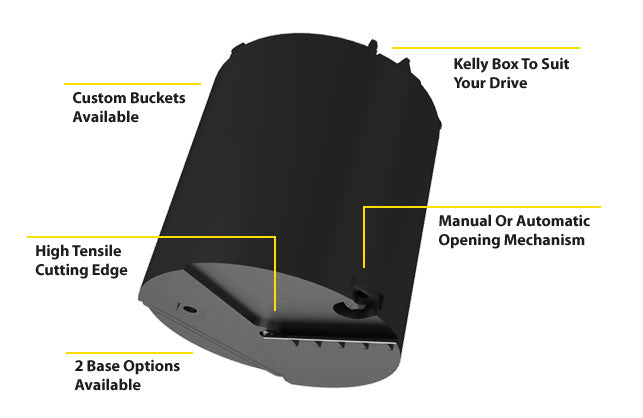

Digga earth cleaning buckets are made from the highest grade of metal and boast many practical features. Hover your mouse over the features´ 'plus' symbol on the diagram below to reveal the respective benefits.

Cleaning Bucket Specifications

MODEL	400MM	450MM	500MM	600MM
Cutting Diameter	400mm (16”)	450mm (18”)	500mm (20”)	600mm (24”)
Overal Length	1500mm (60”)	1500mm (60”)	1500mm (60”)	1500mm (60”)
Base Type	Swivel / Valve	Swivel / Valve	Swivel / Valve	Swivel / Valve
Hub Options *	5, 7	5, 7, 9	5, 7, 9	5, 7, 9
Teeth	Blade	Blade	Blade	Blade

MODEL	750MM	900MM	1000MM	1050MM
Cutting Diameter	750mm (30”)	900mm (36”)	1000mm (40”)	1050mm (42”)
Overal Length	1500mm (60”)	1500mm (60”)	1500mm (60”)	1500mm (60”)
Base Type	Swivel / Valve	Swivel / Valve	Swivel / Valve	Swivel / Valve
Hub Options *	5, 7, 9	5, 7, 9	5, 7, 9	5, 7, 9
Teeth	Blade	Blade	Blade	Blade

MODEL	1200MM	1500MM	1800MM	2000MM
Cutting Diameter	1200mm (48”)	1500mm (60”)	1800mm (72”)	2000mm (80”)
Overal Length	1500mm (60”)	900mm (36”)	900mm (36”)	900mm (36”)
Base Type	Swivel / Valve	Swivel / Valve	Swivel / Valve	Swivel / Valve
Hub Options *	5, 7, 9	5, 7, 9	5, 7, 9	5, 7, 9
Teeth	Blade	Blade	Blade	Blade
